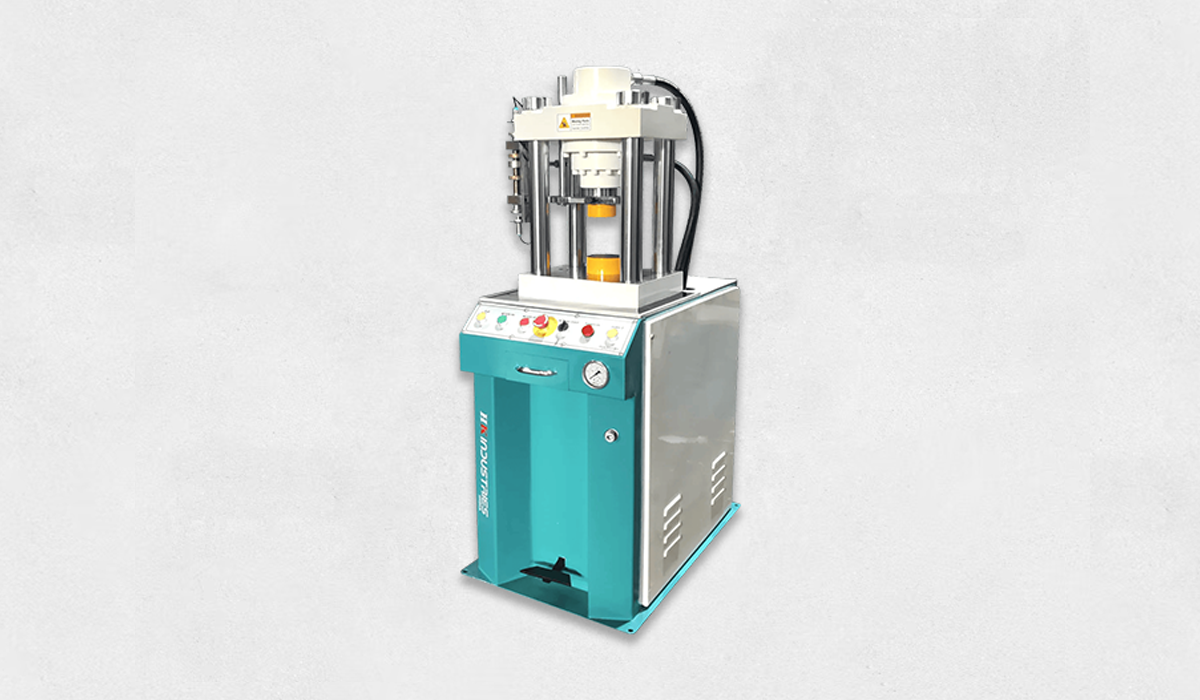

The Hydraulic Multipurpose Press - 70 Tons is designed for jewellery production units requiring a single machine for multiple heavy-duty applications. Built for versatility and reliability, this press supports a wide range of operations, improving productivity and reducing the need for multiple machines.
It is suitable for bangle sizing, stamping of melted gold and silver ingots, hallmarking and logo impressions, gold and silver bar cutting, paper impression and marking, as well as pendant and custom jewellery component pressing. The machine delivers stable and uniform pressure, ensuring clean and accurate results across all applications.
Constructed with a robust hydraulic system and sturdy frame, the press is ideal for continuous industrial use with low maintenance requirements.
Applications
- Bangle sizing
- Melted gold & silver ingot stamping
- Hallmarking symbols and logo impressions
- Gold & silver bar cutting
- Paper impression and marking
- Pendant and custom jewellery pressing
Specification Data
| Parameter | Specification |
|---|---|
| Machine Type | Hydraulic Multipurpose Press |
| Application | Jewellery Production (Multi-Use) |
| Max. Working Thrust | 70 Tons |
| Max. Working Pressure | 315 Bar |
| Useful Stroke | 150 mm |
| Working Speed | 4 – 6 / min |
| Bolster Plate Size | 320 × 200 mm |
| Electric Motor | 5 HP |
| Oil Tank Capacity | 50 Litres |
| Construction | Heavy-Duty Industrial Design |
| Machine Weight | Approx. 720 Kgs |
| Duty Cycle | Continuous Operation |
