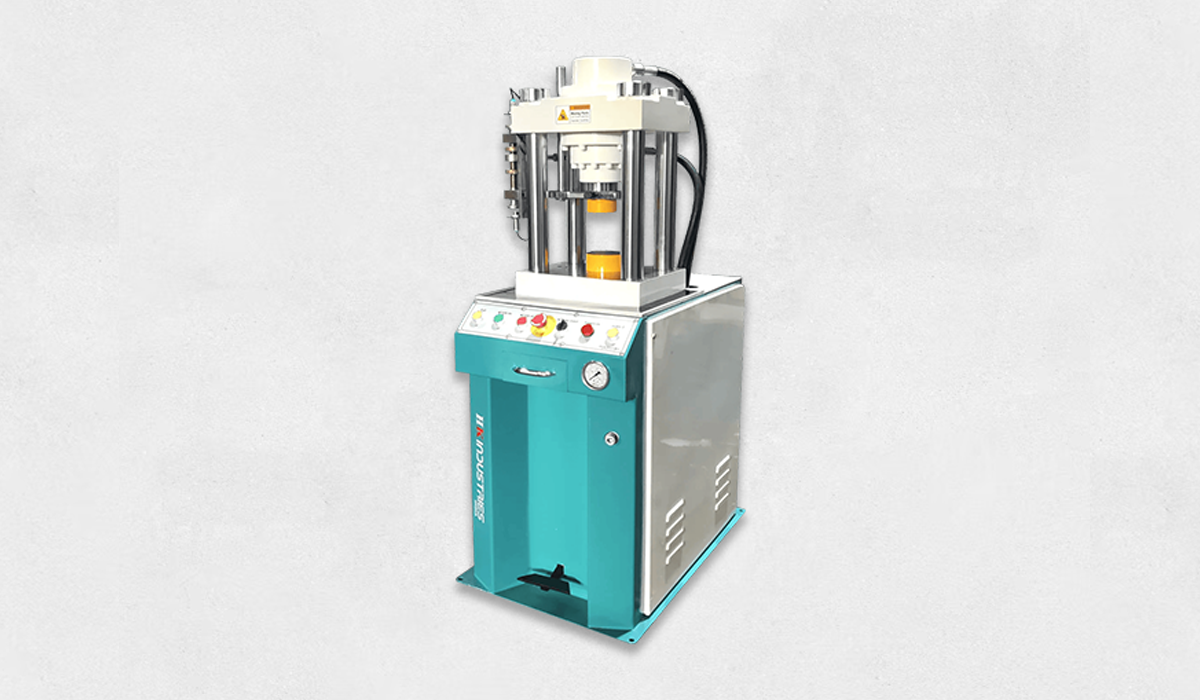

The Hydraulic Multipurpose Press - 40 Tons is designed for jewellery production units, offering a versatile solution for bangle sizing, ingot stamping, hallmarking, bar cutting, pendant pressing, and paper impression marking. This machine delivers stable and uniform pressure, ensuring precise and consistent results across multiple applications.
Built with a robust hydraulic system and sturdy frame, it is ideal for continuous industrial use, providing high efficiency, low maintenance, and long service life.
Applications
- Bangle sizing
- Melted gold & silver ingot stamping
- Hallmarking symbols and logo impressions
- Gold & silver bar cutting
- Paper impression and marking
- Pendant and custom jewellery pressing
Specification Data
| Parameter | Specification |
|---|---|
| Machine Type | Hydraulic Multipurpose Press |
| Application | Jewellery Production (Multi-Use) |
| Max. Working Thrust | 40 Tons |
| Max. Working Pressure | 315 Bar |
| Useful Stroke | 75 mm |
| Working Speed | 5 – 7 / min |
| Bolster Plate Size | 260 × 160 mm |
| Electric Motor | 3 HP |
| Oil Tank Capacity | 45 Litres |
| Construction | Heavy-Duty Industrial Design |
| Machine Weight | Approx. 415 Kgs |
| Duty Cycle | Continuous Operation |
