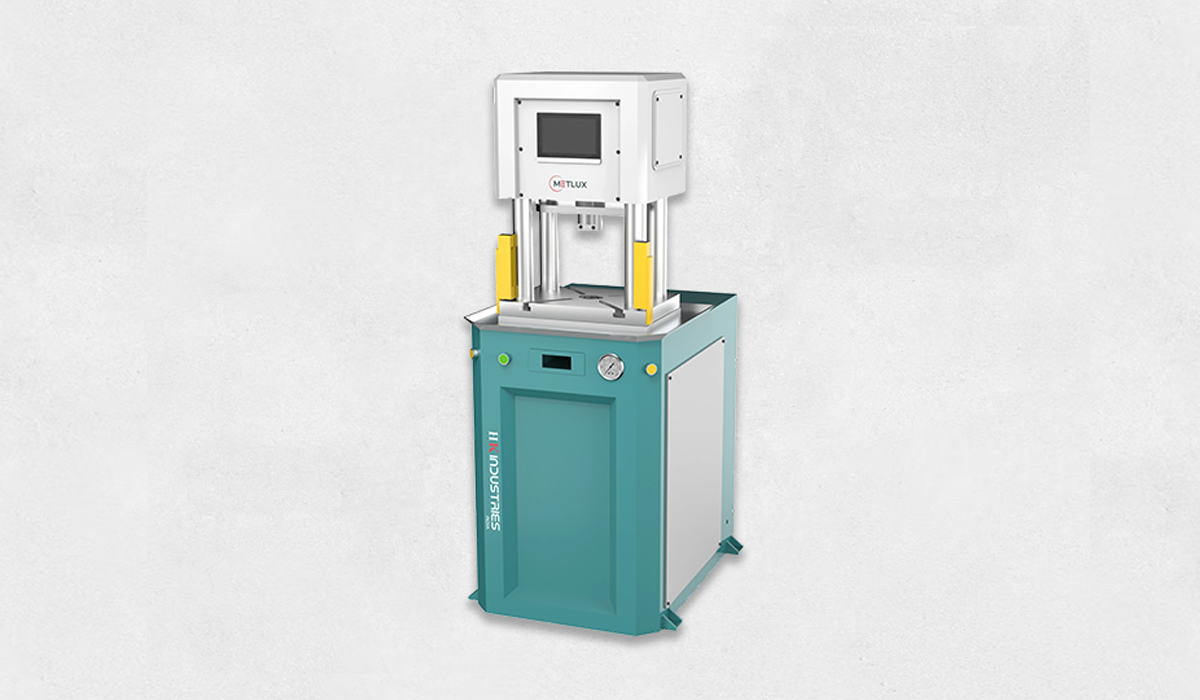

The Hydraulic Die Cutting Press - PLC Controlled, 40 Tons is a precision-engineered machine designed for accurate and consistent cutting of jewelry components. Delivering 40 tons of cutting force, this press ensures clean edges and uniform output, making it ideal for high-efficiency production of custom shapes and intricate designs.
Equipped with a PLC-based operation panel system, the machine allows precise control over cutting parameters and smooth monitoring of production. Its multiple-stroke system with variable force control and die lifting provides flexibility for different materials and thicknesses, while ensuring superior cutting quality.
Designed for productivity and operator safety, the press features an easy die fitting adjustment system with a convenient deposit drawer, along with an integrated counting system and holding timer for accurate production tracking. Cutting adjustments for faster cycles, a hand-cut safety sensor, and an automatic feeder further enhance efficiency, safety, and consistency during continuous operation.
Key Features
- PLC-Based Operation Panel System
- 40 Tons Cutting Capacity
- Multiple Stroke with Variable Force & Die Lifting
- Die Fitting Adjustment System with Easy Deposit Drawer
- Built-in Counting System
- Holding Timer for Controlled Cutting
- Cutting Adjustment for Faster Production
- Hand-Cut Safety Sensor for Operator Protection
- Auto Feeder for Continuous Operation
Specification Data
| Parameter | Specification |
|---|---|
| Machine Type | Hydraulic Die Cutting Press |
| Control System | PLC Controlled Operation Panel |
| Max. Working Thrust | 40 Tons |
| Max. Working Pressure | 200 Bar |
| Useful Stroke | 100 mm |
| Working Speed | 16 – 26 / min |
| Bolster Plate Size | 510 × 450 mm |
| Electric Motor | 5 HP |
| Oil Tank Capacity | 60 Litres |
| Feeding System | Auto Feeder |
| Stroke System | Multiple Stroke with Variable Force & Die Lifting |
| Die Adjustment | Die Fitting Adjustment with Deposit Drawer |
| Production Monitoring | Counting System |
| Timer Function | Holding Timer |
| Safety System | Hand-Cut Safety Sensor |
| Machine Weight | Approx. 375 Kgs |
| Duty Cycle | Continuous Industrial Operation |
