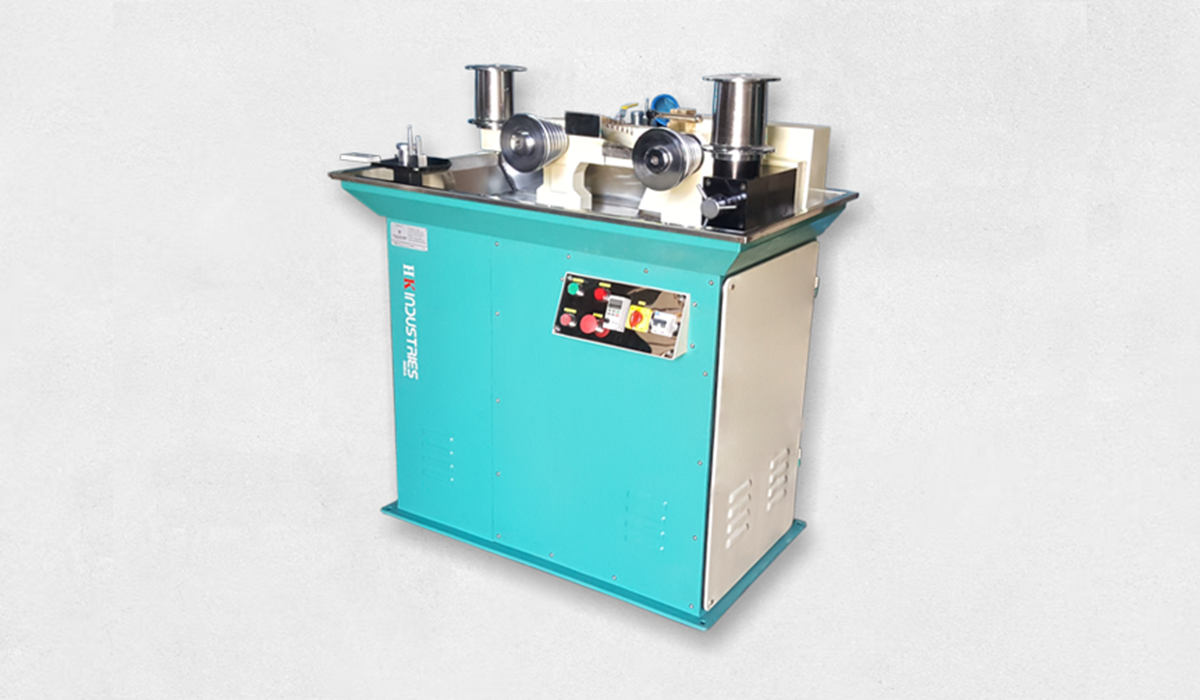

The Gold Wire Drawing Machine is engineered to deliver excellent performance with minimal maintenance requirements over long-term operation. Designed for smooth and reliable wire drawing, this machine ensures consistent output quality while maintaining operational stability.
The use of a belt drive system significantly reduces the risk of wire breakage during operation, ensuring smooth wire passage and improved process reliability. Additionally, the trailing roller made of HCHC material provides superior strength and durability, ensuring long service life without damage even under continuous working conditions.
This machine is suitable for precise gold wire drawing applications where durability, accuracy, and reduced downtime are essential.
Performance & Construction Highlights:
- Excellent performance with low maintenance
- Belt drive system to reduce wire breakage
- Smooth and controlled wire passage
- Trailing roller made of HCHC material for long-term durability
- Robust construction for continuous operation
Wire Passage Options:
| Parameter | 4WD | 6WD | 12WD |
|---|---|---|---|
| Main Motor | 1.5 HP | 2 HP | 3 HP |
| Cooling Motor | 0.25 HP | 0.25 HP | 0.25 HP |
| Max. Wire Dia (Gauge / mm) | 20 / 0.91 | 18 / 1.22 | 10 / 1.29 |
| Min. Wire Dia (Gauge / mm) | 36 / 0.91 | 36 / 0.91 | 36 / 0.91 |
| Machine Weight | 255 Kg | 330 Kg | 370 Kg |
Machine Dimensions:
| Parameter | 4WD | 6WD | 12WD |
|---|---|---|---|
| Length | 800 mm | 1100 mm | 1371 mm |
| Depth | 450 mm | 630 mm | 1016 mm |
| Height | 1020 mm | 1200 mm | 1117 mm |
