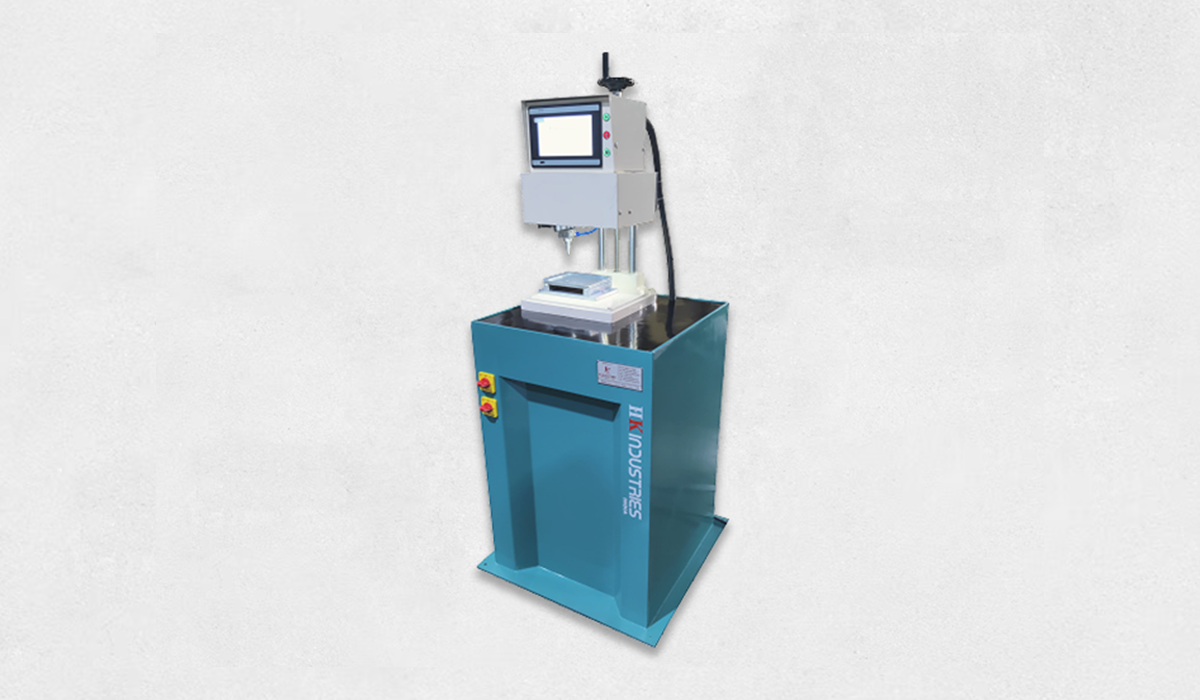

The Dot Pin Marking Machine is a robust and precise marking solution designed for permanent identification and marking on metal and industrial components. Using controlled pin impact technology, this machine produces clear, accurate, and durable markings with consistent depth and quality.
Equipped with a 7-inch touch screen controller system, the machine offers easy operation and precise control over marking parameters. Its compact structure, inbuilt compressor, and reliable pneumatic system make it suitable for both industrial and workshop environments where dependable marking performance is required.
Applications:
- Gold & Silver Casted Bars
- Name Plates
- Automobile Components
- Heavy Engineering Parts
- Pharmaceutical Industry
- Aerospace & Defence Components
- Fabrication Engineering
- Submersible Pumps & Motors
- Valves and Bearings
- Locks & Keys
- And many more industrial marking applications
Technical Specifications:
- Marking Area: 6" × 4" Inch (150 × 100 mm)
- Pin Material: Carbide
- Air Pressure Requirement: 5 to 6 Bar
- Display: 7" Touch Screen Controller System
- Marking Depth: Up to 10 mm
- Power Supply: 240 V
- Inbuilt Compressor
- Machine Weight: Approx. 75 Kg
- Table to Pin Height: Maximum (as per setup)
