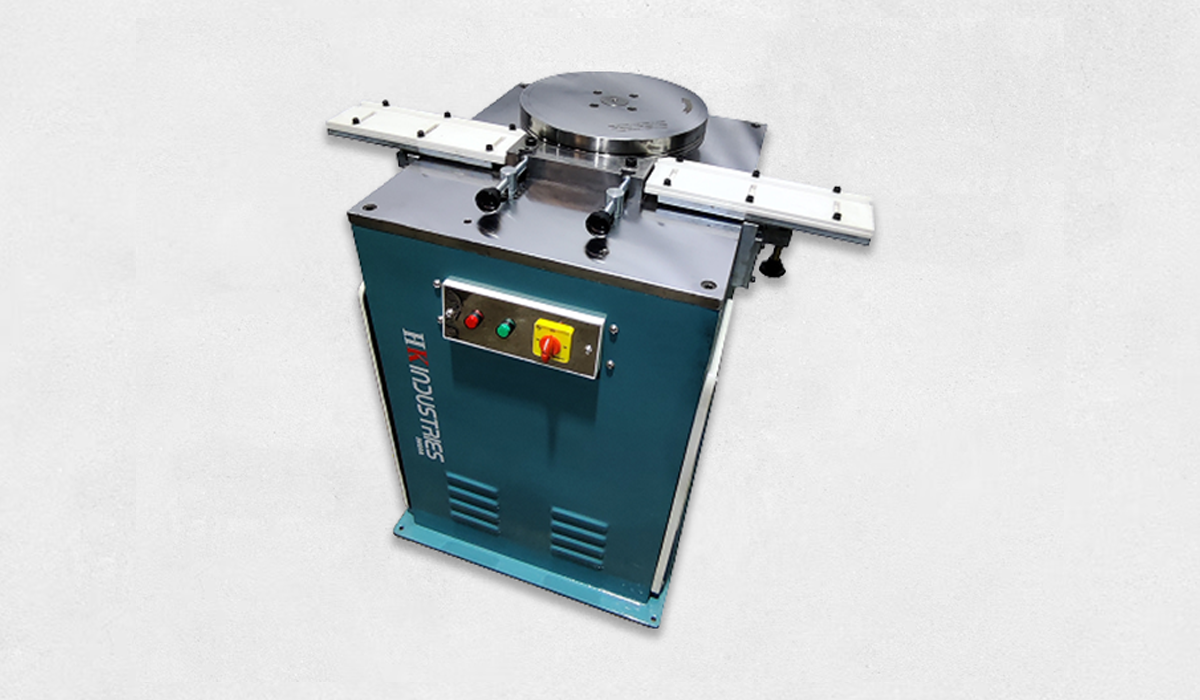

The Coin Rimming Machine is designed to remove burrs and sharp edges formed on coins after the blanking process. During rimming, the sharp edges of the coin are converted into a smooth and shining finish, improving both appearance and handling quality.
When rimming is performed before embossing, the rimmmed coin helps reduce the pressure load on the press machine by approximately 20%-25%. This reduction in pressure enhances machine life, improves die life, and results in a superior edge finish on the final embossed coin.
The Coin Rimming Machine ensures uniform edge finishing, consistent results, and improved production efficiency, making it an essential process in coin manufacturing operations.
Performance & Construction Highlights:
- Removes burrs and sharp edges after blanking
- Produces smooth and shining coin edges
- Reduces embossing pressure on press machines
- Improves press machine and die lifespan
- Ensures superior edge finish on final coins
- Consistent and uniform rimming output
Technical Specifications:
- Wheel Diameter: 300 mm
- Coin Round Diameter Range: Min. 15 mm / Max. 60 mm
- Revolution Speed: 50 RPM
- Up-down adjustable feeder ramp for inward and outward coin movement
- Coin collection box
- Reserve forward switch
- Die tilting setting with screw
- Different size grooves according to coin thickness
- Machine Weight: 160 Kg
- Machine Size: 500 mm × 400 mm
- Electric Motor: 1 HP
