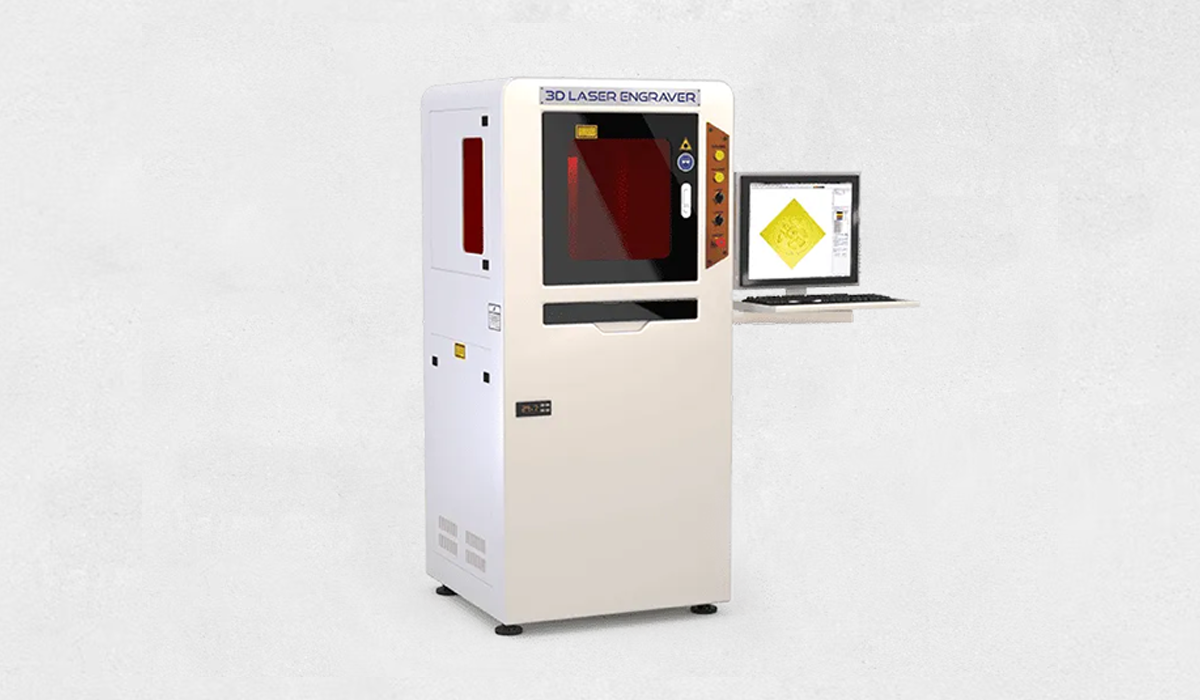

Engrave Master - 3D Metal Laser Engraver is an advanced laser engraving system designed for high-precision 3D metal marking and engraving applications. This machine is built for manufacturers who require accurate depth control, uniform focus, and consistent engraving quality across complex and uneven metal surfaces.
Engrave Master is equipped with advanced software capabilities that support multiple correction methods, enabling fast and high-precision correction on high-accuracy platforms. The system allows free adjustment of each focal point position under a non-ideal plane, ensuring full-format focus consistency across the entire working area. This makes it especially suitable for detailed 3D engraving where surface variation is present.
The machine supports 3D applications with STL model importing, allowing users to perform 3D data editing, surface marking, and relief processing efficiently. With optional expansion support for 3D scanning equipment, Engrave Master enables rapid localization and reverse processing of 3D workpieces. This allows fast and accurate marking without the need to import the original workpiece model, improving workflow speed and flexibility.
Designed with a robust enclosed structure, Engrave Master ensures stable operation, enhanced safety, and consistent engraving results during continuous working hours. Its precision optical system, stable galvanometer performance, and optimized processing speed make it a reliable solution for industrial-grade metal engraving and decorative marking applications.
Software & System Advantages
- Supports multiple correction methods for fast and high-precision correction
- Free adjustment of focal points under non-ideal plane conditions
- Achieves full-format focus consistency
- Supports 3D applications and STL model importing
- Enables 3D data editing, surface marking, and relief processing
- Supports expansion of 3D scanning equipment
- Rapid localization and reverse processing of 3D workpieces
- Enables fast marking without importing the workpiece model
Applications
- 3D metal engraving
- Surface and relief engraving on metal components
- Decorative metal engraving
- Industrial marking on complex metal surfaces
- Precision engraving for detailed designs
Technical Specifications – Engrave Master
| ITEM | UNIT | SPECIFICATION |
|---|---|---|
| Power Supply | Input Voltage (VAC) | 220w |
| Output Voltage (VDC) | ±24 | |
| Current (A) | 10 | |
| Control Card | Output Interface | XYZ-100 |
| Laser Type | Fiber | |
| Environmental | Ambient Temperature (°) | 0 ~ +50 |
| Requirement | Storage Temperature (°) | -10 ~ +60 |
| Galvometer | Scan Angle (°) | ±11.25 |
| Specifications | Repeatability (μrad) | 8 |
| Max. Gain Drift (ppm/k) | 100 | |
| Max. Offset Drift (μrad/k) | 30 | |
| Long-term drift over 8h (μrad) | 0.5 | |
| Maximum Processing Speed (Characters/s) | 350 @ 200×200 | |
| Tracking Error (ms) | 0.28 | |
| Optical | Aperture Size | 20mm |
| Specifications | Subsystem input beam diameter | 7mm |
| Weight | 98 Kg | |
| Machine Size | Width 30 × Depth 29 × Height 66 (inches) |
