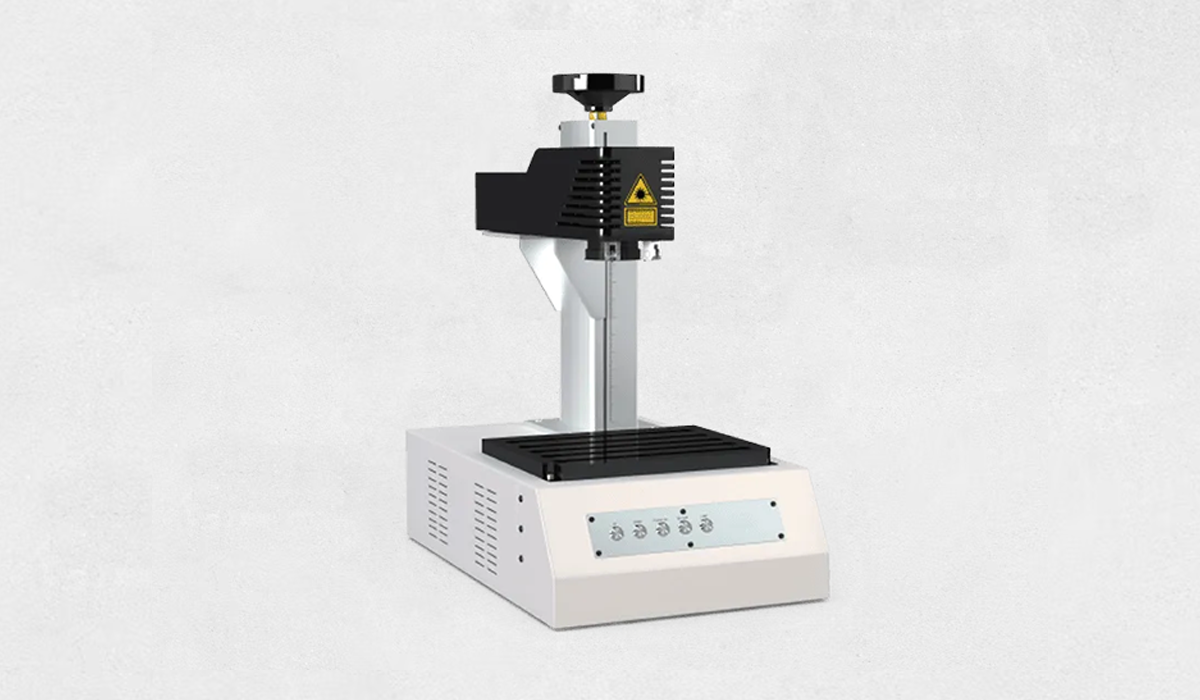

Elegance Mark - Laser Hallmarking Machine is designed specifically for jewellers and hallmarking applications, offering precise spot marking and complex shape micro marking with excellent clarity. This open-series laser system is ideal for BIS hallmarking, purity marking, and identification marking on gold jewellery, where accuracy and consistency are critical.
Engineered for ease of use and portability, Elegance Mark features a compact table-type design with motor/manual axis control, making it suitable for both workshop and assay center environments. The machine supports micro marking on flat and shaped jewellery surfaces, ensuring sharp, permanent marks without damaging the jewellery finish.
With foot-operated control, operators can perform marking tasks comfortably and efficiently, improving workflow and reducing handling time. The controlled laser output enables clean and uniform marking on delicate jewellery pieces, even in complex shapes and fine patterns. Its open structure allows easy access to workpieces, making it practical for day-to-day hallmarking operations.
Built with a forced air-cooled system, Elegance Mark ensures stable performance during continuous operation. The machine's robust construction, simple operation, and low maintenance requirements make it a dependable solution for jewellers, hallmarking centers, and assay offices.
Key Features of Elegance Mark - Laser Hallmarking Machine
- Designed for jewellers & hallmarking applications
- Precise spot marking and complex shape micro marking
- Motor / Manual axis for flexible operation
- Foot-operated control for easy and safe usage
- Table-type structure for stable marking
- Open-series design for easy accessibility
- Forced air cooling for continuous operation
- Compact, portable, and low maintenance
Applications
- BIS hallmark marking on gold jewellery
- Assay center marking
- Purity of gold marking
- Logo and identification marking
- Micro marking on complex jewellery shapes
Technical Specifications – Elegance Mark
| Parameter | 20W | 30W |
|---|---|---|
| Laser Type | Pulse Fiber Laser | Pulse Fiber Laser |
| Wavelength (nm) | 1060 – 1085 | 1060 – 1085 |
| Polarization | Random | Random |
| Working Stroke | 300 mm | 300 mm |
| Nominal Average Output Power (W) | ≤ 20 | ≤ 30 |
| Single Pulse Energy (mJ) | 1 @ 20 kHz | 1 @ 30 kHz |
| Beam Diameter (mm) | 6 – 8 | 6 – 8 |
| Pulse Duration (ns) | < 120 @ 20 kHz | < 120 @ 30 kHz |
| Pulse Repetition Rate (kHz) | 20 – 60 | 30 – 60 |
| Output Power Tenability (%) | 10 – 100 | 10 – 100 |
| Output Fiber Cable Length (m) | 2.0 | 2.0 |
| Power Consumption (20°C Voltage) | 240V | 240V |
| Cooling System | Forced Air Cooled | Forced Air Cooled |
| Marking Speed | 4000 mm/min | 4000 mm/min |
| Machine Weight | 65 Kg | 68 Kg |
| Machine Size | Width 16 × Depth 26 × Height 28 (inches) | |
