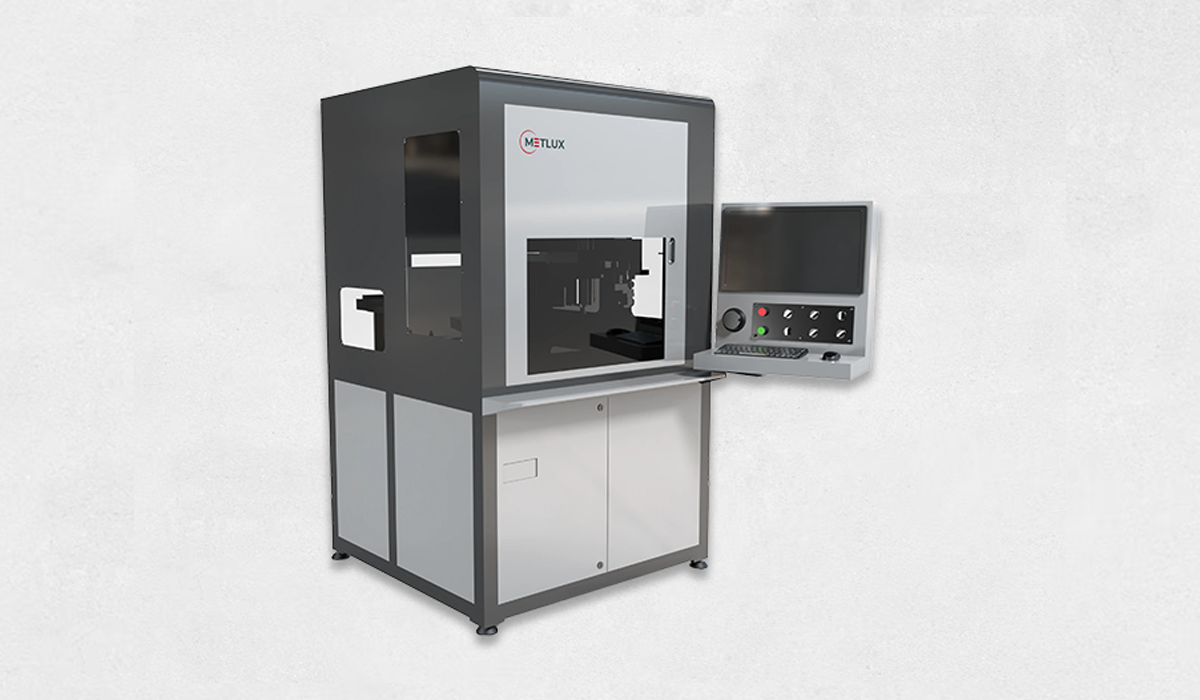

The FlatCam CNC Machine is an advanced multi-axis machining system designed for producing highly complex and precise jewellery components with exceptional efficiency. Unlike conventional 3-axis or even 5-axis machines, this CNC system offers seven degrees of movement, allowing the tool and workpiece to rotate, tilt, and shift seamlessly during the machining process.
This advanced axis movement enables superior detailing, smooth contours, and high-precision output, making the FlatCam CNC Machine ideal for intricate jewellery designs and complex decorative components. Its ability to perform multiple operations in a single setup ensures repeat-perfect production with excellent surface quality and accuracy.
Applications:
- 3D pendants
- Sheet decoration
- Interlock pendants
- Flat ring concept designs
- Jewellery components
- Bracelets
- Interlock earrings
Technical Details
- Model Name: Flatcam – IRIS Series
- Special Feature: Adds rainbow effect on gold and silver sheets
- Maximum Recovery Rate
- Number of Axis: 7 Axis (X, Y, Z, R₁, R₂, J, H)
- Design Software Compatibility: CorelDRAW, ArtCAM, AutoCAD
- Working Area: 100 mm × 320 mm
- Sheet Thickness Capacity: 0.25 mm to 2 mm
- Sheet Clamping: Vacuum Fixture
- Spindle Motors:
– Vertical: 3.7 kW, 40,000 RPM (Max Output)
– Horizontal: 400 W, 6,000 RPM (Max Output) - Machine Dimensions: L 980 mm × W 980 mm × H 1600 mm
(PC cabinet not mentioned) - Machine Weight: Approx. 650 Kg
- Power Supply: 3 Phase / 1 Phase (Optional)
