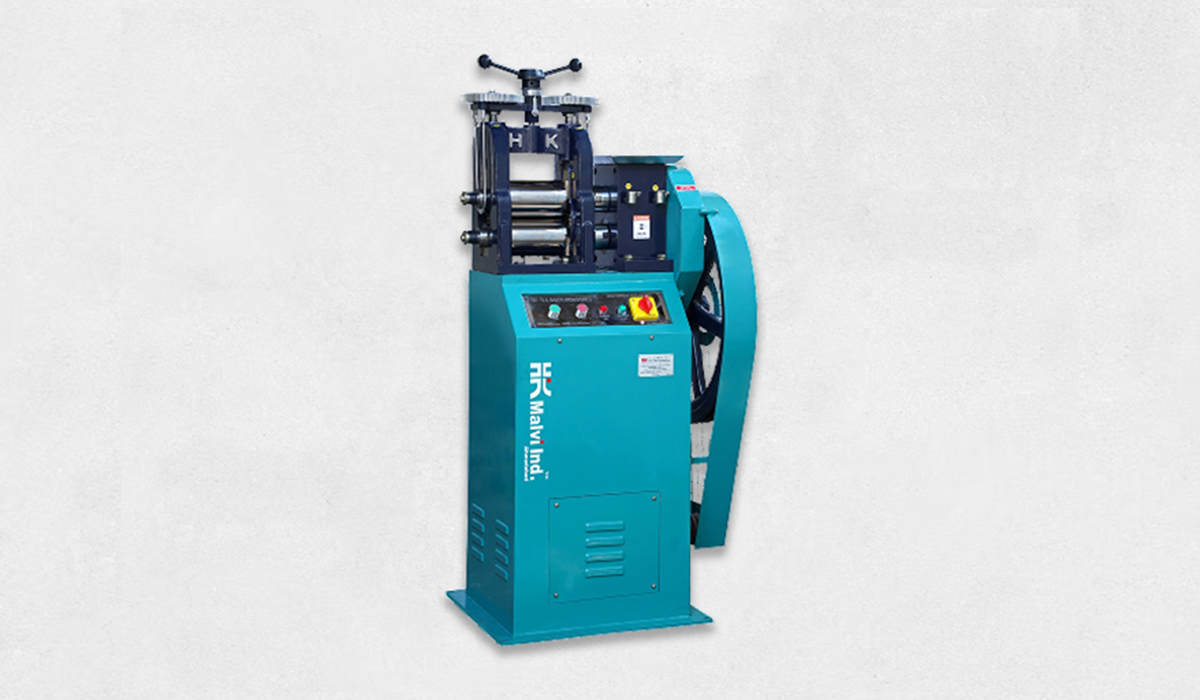

The HK S1 Series Sheet Rolling Machine is designed for rolling flat sheets and wire, making it suitable for both small-scale and large-scale industries. These rolling machines are equipped with a direct motor wheel and gear system, which ensures smooth operation while requiring minimum floor space.
Built with high-quality materials and superior workmanship, the S1 Series reflects a high level of quality control at every stage of manufacturing. This enables the delivery of a first-class, reliable, and durable rolling machine suitable for continuous industrial use.
The compact design, combined with efficient power transmission, makes the HK S1 Series an ideal choice for precision rolling applications in jewellery and metal processing industries.
Features:
- Wheel Drive System
- Wire & Strip Winder (Optional)
- Lubrication System (Optional)
- Side Roller for Designed Purpose – Garedi (Optional)
Model Specifications
| Model | Roller Width (mm) | Roller Diameter (mm) | Wire Groove Sizes | Roller Speed (RPM) | Max. Thickness (mm) | Electric Motor | Weight (Kg) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| S/1/125 | 125 | 68 | 1 – 0.7 | 45 | 15 | 1.5 HP | 180 | 585 × 555 × 1345 |
| SP S/1/150 | 150 | 100 | 14 – 0.7 | 50 | 19 | 3.0 HP | 290 | 660 × 635 × 1420 |
| SP S/1/200 | 200 | 100 | 16 – 0.7 | 50 | 19 | 5.0 HP | 470 | 865 × 660 × 1575 |
